MySQL+MyBatis实现对测试用例数据的读取

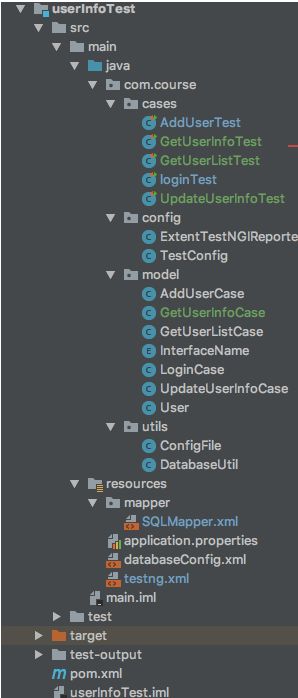

本篇文章讲解TestNG+MySQL+MyBatis+ExtentReports实现对测试用例数据的读取,下面放出所有配置文件的目录方便下文理解。
1、配置mysql数据库
在这里,拿logincase表举例,后面也拿login做讲解。
2、配置pom文件
pom文件部分
首先在pom文件中,配置httpclient、mybatis、mysql、extentreports、testng的各种依赖。
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.course.code</groupId> <artifactId>userInfoTest</artifactId> <version>1.0-SNAPSHOT</version> <build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <source>6</source> <target>6</target> </configuration> </plugin> </plugins> </build> <dependencies> <dependency> <groupId>org.apache.httpcomponents</groupId> <artifactId>httpclient</artifactId> <version>4.1.2</version> </dependency> <dependency> <groupId>org.json</groupId> <artifactId>json</artifactId> <version>20170516</version> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.4.4</version> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>6.0.5</version> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.16.16</version> </dependency> <dependency> <groupId>com.relevantcodes</groupId> <artifactId>extentreports</artifactId> <version>2.41.1</version> </dependency> <dependency> <groupId>com.vimalselvam</groupId> <artifactId>testng-extentsreport</artifactId> <version>1.3.1</version> </dependency> <dependency> <groupId>org.testng</groupId> <artifactId>testng</artifactId> <version>6.11</version> </dependency> <dependency> <groupId>com.aventstack</groupId> <artifactId>extentreports</artifactId> <version>3.0.6</version> </dependency> </dependencies>
3、配置application.properties文件
application.properties
resource目录下配置application.properties文件,用以存储测试地址。
test.url=http://localhost:9529 #登录接口 login.uri=/v1/login #更新用户信息 updateUserInfo.uri=/v1/updateUserInfo #获取用户列表 getUserList.uri=/v1/getUserList #获取用户信息 getUserInfo.uri=/v1/getUserInfo #添加用户接口 addUser.uri=/v1/addUser
4、配置databaseConfig.xml文件
databaseConfig.xml
resource目录下配置databaseConfig.xml文件,用以连接数据库。
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <!-- 注册对象的空间命名 --> <environments default="development"> <environment id="development"> <transactionManager type="JDBC"/> <dataSource type="POOLED"> <!-- 加载数据驱动 --> <property name="driver" value="com.mysql.jdbc.Driver"/> <!-- 数据库连接地址 --> <property name="url" value="jdbc:mysql://localhost:3306/myBatisTest"/> <!-- 数据库用户、密码 --> <property name="username" value="root"/> <property name="password" value="123456"/> </dataSource> </environment> </environments> <!-- 注册映射文件:java对象与数据库之间的xml文件路径 --> <mappers> <mapper resource="mapper/SQLMapper.xml"/> </mappers> </configuration>
5、配置testng.xml文件
testng.xml
resource目录下配置testng.xml文件,用以执行所有testng的测试套件。
<?xml version="1.0" encoding="UTF-8" ?> <suite name="用户管理系统测试套件"> <test name="用户管理系统测试用例"> <classes> <class name="com.course.cases.loginTest"> <methods> <include name="loginTrue"/> <include name="loginFalse"/> </methods> </class> <class name = "com.course.cases.AddUserTest"> <methods> <include name="addUser"/> </methods> </class> <class name = "com.course.cases.GetUserInfoTest"> <methods> <include name="getUserInfo"/> </methods> </class> <class name = "com.course.cases.GetUserListTest"> <methods> <include name="getUserList"/> </methods> </class> <class name = "com.course.cases.UpdateUserInfoTest"> <methods> <include name="updateUserInfo"/> <include name="deleteUser"/> </methods> </class> </classes> </test> <listeners> <listener class-name="com.course.config.ExtentTestNGIReporterListener"> </listener> </listeners> </suite>
6、配置SQLMapper.xml文件
SQLMapper.xml
resources/mapper目录下,配置resources/mapper目录下,配置SQLMapper.xml文件,用户存储所有case的sql语句。文件,用户存储所有case的sql语句。
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.course.model"> <!--获取登录接口case--> <select id="loginCase" parameterType="Integer" resultType="com.course.model.LoginCase"> select * from loginCase where id=#{id}; </select> <!--添加用户接口case--> <select id="addUserCase" parameterType="Integer" resultType="com.course.model.AddUserCase"> select * from addUserCase where id=#{id}; </select> <!--获取用户信息case--> <select id="getUserInfoCase" parameterType="Integer" resultType="com.course.model.GetUserInfoCase"> select * from getUserInfoCase where id=#{id}; </select> <!--获取用户列表case--> <select id="getUserListCase" parameterType="Integer" resultType="com.course.model.GetUserListCase"> select * from getUserListCase where id = #{id}; </select> <!--更新/删除用户case--> <select id="updateUserInfoCase" parameterType="Integer" resultType="com.course.model.UpdateUserInfoCase"> select * from updateUserInfoCase where id = #{id}; </select> </mapper>
7、配置model文件
com.course.model目录下,配置各个接口的数据配置文件,和一个InterfaceName枚举。
在这里,同样拿LoginCase里的数据举例,其他case的格式一样。在这里参照mysql里配置的字段一一进行声明。
LoginCase
在这里,同样拿LoginCase里的数据举例,其他case的格式一样。在这里参照mysql里配置的字段一一进行声明。
@Data public class LoginCase { private int id; private String userName; private String password; private String expected; }
InterfaceName
InterfaceName配置如下
public enum InterfaceName { GETUSERLIST,LOGIN,UPDATEUSERINFO,GETUSERINFO,ADDUSER }
8、配置config文件
com.course.config目录下,新建ExtentTestNGIReporterListener文件和TestConfig文件。
ExtentTestNGIReporterListener
ExtentTestNGIReporterListener里是ExtentReport的测试报告配置文件,固定代码可以直接拷过去使用。
public class ExtentTestNGIReporterListener implements IReporter { //生成的路径以及文件名 private static final String OUTPUT_FOLDER = "test-output/"; private static final String FILE_NAME = "index.html"; private ExtentReports extent; @Override public void generateReport(List<XmlSuite> xmlSuites, List<ISuite> suites, String outputDirectory) { init(); boolean createSuiteNode = false; if(suites.size()>1){ createSuiteNode=true; } for (ISuite suite : suites) { Map<String, ISuiteResult> result = suite.getResults(); //如果suite里面没有任何用例,直接跳过,不在报告里生成 if(result.size()==0){ continue; } //统计suite下的成功、失败、跳过的总用例数 int suiteFailSize=0; int suitePassSize=0; int suiteSkipSize=0; ExtentTest suiteTest=null; //存在多个suite的情况下,在报告中将同一个一个suite的测试结果归为一类,创建一级节点。 if(createSuiteNode){ suiteTest = extent.createTest(suite.getName()).assignCategory(suite.getName()); } boolean createSuiteResultNode = false; if(result.size()>1){ createSuiteResultNode=true; } for (ISuiteResult r : result.values()) { ExtentTest resultNode; ITestContext context = r.getTestContext(); if(createSuiteResultNode){ //没有创建suite的情况下,将在SuiteResult的创建为一级节点,否则创建为suite的一个子节点。 if( null == suiteTest){ resultNode = extent.createTest(r.getTestContext().getName()); }else{ resultNode = suiteTest.createNode(r.getTestContext().getName()); } }else{ resultNode = suiteTest; } if(resultNode != null){ resultNode.getModel().setName(suite.getName()+" : "+r.getTestContext().getName()); if(resultNode.getModel().hasCategory()){ resultNode.assignCategory(r.getTestContext().getName()); }else{ resultNode.assignCategory(suite.getName(),r.getTestContext().getName()); } resultNode.getModel().setStartTime(r.getTestContext().getStartDate()); resultNode.getModel().setEndTime(r.getTestContext().getEndDate()); //统计SuiteResult下的数据 int passSize = r.getTestContext().getPassedTests().size(); int failSize = r.getTestContext().getFailedTests().size(); int skipSize = r.getTestContext().getSkippedTests().size(); suitePassSize += passSize; suiteFailSize += failSize; suiteSkipSize += skipSize; if(failSize>0){ resultNode.getModel().setStatus(Status.FAIL); } resultNode.getModel().setDescription(String.format("Pass: %s ; Fail: %s ; Skip: %s ;",passSize,failSize,skipSize)); } buildTestNodes(resultNode,context.getFailedTests(), Status.FAIL); buildTestNodes(resultNode,context.getSkippedTests(), Status.SKIP); buildTestNodes(resultNode,context.getPassedTests(), Status.PASS); } if(suiteTest!= null){ suiteTest.getModel().setDescription(String.format("Pass: %s ; Fail: %s ; Skip: %s ;",suitePassSize,suiteFailSize,suiteSkipSize)); if(suiteFailSize>0){ suiteTest.getModel().setStatus(Status.FAIL); } } } // for (String s : Reporter.getOutput()) { // extent.setTestRunnerOutput(s); // } extent.flush(); } private void init() { //文件夹不存在的话进行创建 File reportDir= new File(OUTPUT_FOLDER); if(!reportDir.exists()&& !reportDir .isDirectory()){ reportDir.mkdir(); } ExtentHtmlReporter htmlReporter = new ExtentHtmlReporter(OUTPUT_FOLDER + FILE_NAME); // 设置静态文件的DNS //怎么样解决cdn.rawgit.com访问不了的情况 htmlReporter.config().setResourceCDN(ResourceCDN.EXTENTREPORTS); htmlReporter.config().setDocumentTitle("api自动化测试报告"); htmlReporter.config().setReportName("api自动化测试报告"); htmlReporter.config().setChartVisibilityOnOpen(true); htmlReporter.config().setTestViewChartLocation(ChartLocation.TOP); htmlReporter.config().setTheme(Theme.STANDARD); htmlReporter.config().setCSS(".node.level-1 ul{ display:none;} .node.level-1.active ul{display:block;}"); extent = new ExtentReports(); extent.attachReporter(htmlReporter); extent.setReportUsesManualConfiguration(true); } private void buildTestNodes(ExtentTest extenttest, IResultMap tests, Status status) { //存在父节点时,获取父节点的标签 String[] categories=new String[0]; if(extenttest != null ){ List<TestAttribute> categoryList = extenttest.getModel().getCategoryContext().getAll(); categories = new String[categoryList.size()]; for(int index=0;index<categoryList.size();index++){ categories[index] = categoryList.get(index).getName(); } } ExtentTest test; if (tests.size() > 0) { //调整用例排序,按时间排序 Set<ITestResult> treeSet = new TreeSet<ITestResult>(new Comparator<ITestResult>() { @Override public int compare(ITestResult o1, ITestResult o2) { return o1.getStartMillis()<o2.getStartMillis()?-1:1; } }); treeSet.addAll(tests.getAllResults()); for (ITestResult result : treeSet) { Object[] parameters = result.getParameters(); String name=""; //如果有参数,则使用参数的toString组合代替报告中的name for(Object param:parameters){ name+=param.toString(); } if(name.length()>0){ if(name.length()>50){ name= name.substring(0,49)+"..."; } }else{ name = result.getMethod().getMethodName(); } if(extenttest==null){ test = extent.createTest(name); }else{ //作为子节点进行创建时,设置同父节点的标签一致,便于报告检索。 test = extenttest.createNode(name).assignCategory(categories); } //test.getModel().setDescription(description.toString()); //test = extent.createTest(result.getMethod().getMethodName()); for (String group : result.getMethod().getGroups()) test.assignCategory(group); List<String> outputList = Reporter.getOutput(result); for(String output:outputList){ //将用例的log输出报告中 test.debug(output); } if (result.getThrowable() != null) { test.log(status, result.getThrowable()); } else { test.log(status, "Test " + status.toString().toLowerCase() + "ed"); } test.getModel().setStartTime(getTime(result.getStartMillis())); test.getModel().setEndTime(getTime(result.getEndMillis())); } } }
TestConfig
TestConfig内声明各个case的url和之后要用的一些变量。
public class TestConfig { public static String loginUrl; public static String updateUserInfoUrl; public static String getUserListUrl; public static String getUserInfoUrl; public static String addUserUrl; public static DefaultHttpClient defaultHttpClient; public static CookieStore store; }
9、配置utils文件
com.course.utils目录下配置ConfigFile文件和DatabaseUtil文件。
ConfigFile
ConfigFile内对各个case的url进行赋值
public class ConfigFile { public static ResourceBundle bundle = ResourceBundle.getBundle("application",Locale.CHINA); public static String getUrl(InterfaceName name){ String address = bundle.getString("test.url"); String uri = ""; //最终测试地址 String testUrl; if (name == InterfaceName.GETUSERLIST){ uri = bundle.getString("getUserList.uri"); } if (name == InterfaceName.LOGIN){ uri = bundle.getString("login.uri"); } if (name == InterfaceName.UPDATEUSERINFO){ uri = bundle.getString("updateUserInfo.uri"); } if (name == InterfaceName.GETUSERINFO){ uri = bundle.getString("getUserInfo.uri"); } if (name == InterfaceName.ADDUSER){ uri = bundle.getString("addUser.uri"); } testUrl = address + uri; return testUrl; } }
DatabaseUtil
DatabaseUtil内配置一个getSqlsession方法,作用是执行配置文件中的sql语句,用以之后每个case可以直接调用而不用重复的写这一部分代码。
public class DatabaseUtil { public static SqlSession getSqlsession() throws IOException { //获取配置资源文件 Reader reader = Resources.getResourceAsReader("databaseConfig.xml"); SqlSessionFactory factory = new SqlSessionFactoryBuilder().build(reader); //sqlSession就是能够执行配置文件中的sql语句 SqlSession sqlSession=factory.openSession(); return sqlSession; } }
10、配置cases文件
com.course.cases目录下配置所有case类
loginTest
在这里也只拿loginTest进行举例
public class loginTest { @BeforeTest(groups="loginTrue",description = "测试准备工作,获取httpClient对象") public void beforeTest(){ TestConfig.getUserInfoUrl = ConfigFile.getUrl(InterfaceName.GETUSERINFO); TestConfig.getUserListUrl = ConfigFile.getUrl(InterfaceName.GETUSERLIST); TestConfig.addUserUrl = ConfigFile.getUrl(InterfaceName.ADDUSER); TestConfig.loginUrl = ConfigFile.getUrl(InterfaceName.LOGIN); TestConfig.updateUserInfoUrl = ConfigFile.getUrl(InterfaceName.UPDATEUSERINFO); TestConfig.defaultHttpClient = new DefaultHttpClient(); } @Test(groups = "loginTrue",description = "用户登录接口测试") public void loginTrue() throws IOException { SqlSession session = DatabaseUtil.getSqlsession(); LoginCase loginCase = session.selectOne("loginCase",1); System.out.println(loginCase.toString()); System.out.println(TestConfig.loginUrl); } @Test(description = "用户登录失败接口测试") public void loginFalse() throws IOException { SqlSession session = DatabaseUtil.getSqlsession(); LoginCase loginCase = session.selectOne("loginCase",2); System.out.println(loginCase.toString()); System.out.println(TestConfig.loginUrl); } }
到这里,一套完整的从mysql读取测试用例数据到存储在java工程内的配置就写完了

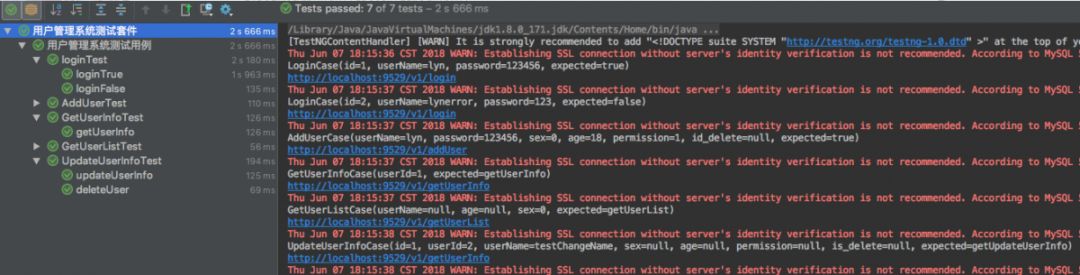

我们可以执行一下testng.xml文件,可以看到所有case都执行成功,并且在控制台上打印出了所有数据信息以及每个case的url。
最后查看一下test-output目录下的index.xml文件,用浏览器打开可以看到ExtentReport的结果也生成成功。
